商品描述

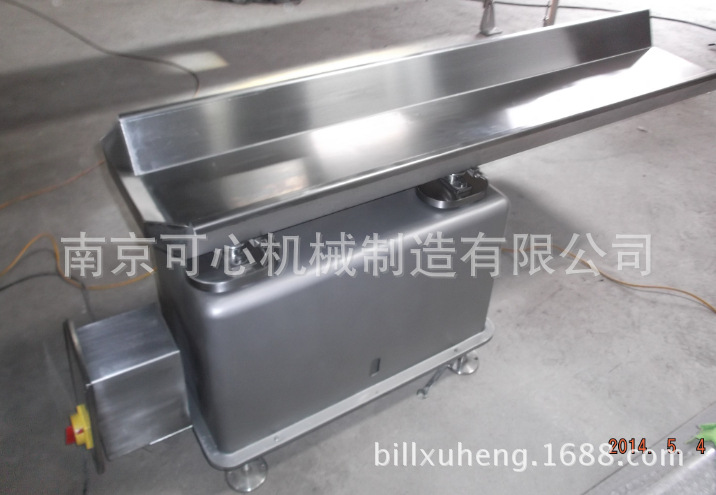

快速后退式水平物料输送机 KH750
南京可心机械的快速后退式水平物料输送机的问世是输送行业上的一次革新，它提供一个清洁，柔和的产品输送环境，快速可靠地输送难以处理的产品，如油炸食品、糕点、饼干、糖果、沙琪玛、茶叶、奶粉、颗粒食品等等。结束了以往产品输送过程中一些需要封闭空间，调味料损失，粘连的现象，无需因清洁而计划外停车。采用偏心轮反冲机构驱动器、消除凸轮机构的死点，节能、通用、稳定、无震动，可以重复使用，5年内无需维修。广泛应用于食品，医药，化工等包装分配系统。
Fastback Horizontal Motion Conveyor of Nanjing Kexin Machinery Co.,Ltd，one revolution in the conveying industry,provides a clean and gentle conveying environment and conveys hard-to handle products fast and reliably such as fried food,pastry,biscuit,candy, Sachima,tea,milk powder, particulate food products and so on. It ends some phenomenons during conveying process such as needs of enclosure space ,loss and adhesion of seasoning. It eliminates unscheduled downtime for sanitation.It adopts the wobbler recoil structure driver which can eliminate the dead point of the cam mechanism and has the features of energy-efficient,versatile,stable ,vibration-free and reusable .No need of maintenance within 5 years.It is widely applied in food,pharmaceutical and chemical packing and distribution systems.
特点
1. KH750水平物料输送机可输送其它类型输送机不能达到重量和其他的效果慢速向前快速向后的远动方式使产品达到最柔和的传送
2输送槽易清洁，产品表面调味料涂层不会被粘连无卫生死角
3无需沉入地下的地角，输送能力能达到27吨/小时，这种输送产品的方式之前仅有弹性振荡式输送机才有的，但750速度更快，效率更高。
4产品在输送槽中有各自规律地向前滑动，不相互碰撞，无破损，不粘连，因次适宜输送极易破碎的和表面附着调味料的产品，性能优于振动式输送机
5固特异同步轮模块化驱动几乎没有其它结束接触远动部件，无需防护及维修，快速更换驱动单元和电机
6 KH750最快输送速度12米/分钟，运行噪音低于70分贝,符合有关运行标准。

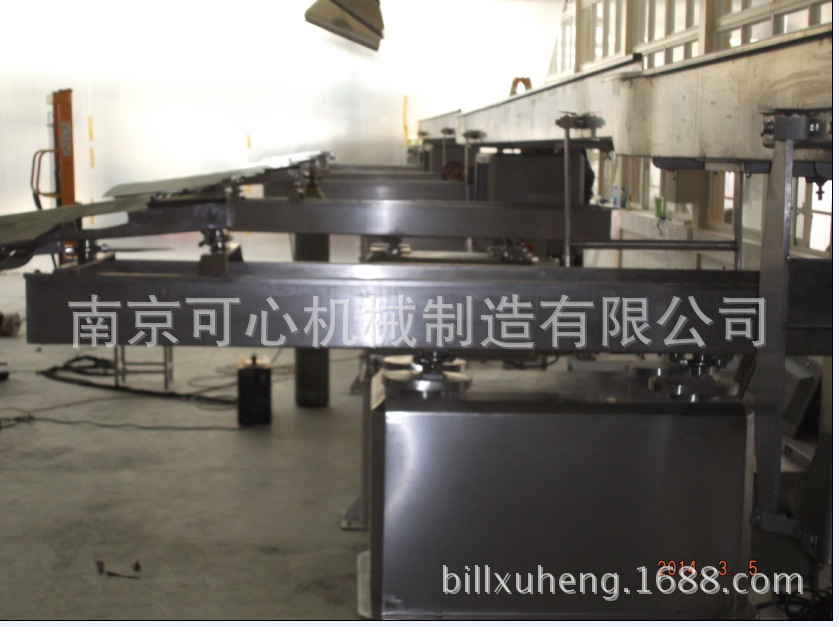

7输送槽可根据需要做成各种形式，输送槽可制成后部半圆筒而前部是旋转圆筒的形状，该机型适用于调味料裹涂及比例门分配系统、适合输送粉料的管状，做成多流道，多个下料分配口，做成储料仓形式等等。
8人性化设计，所有零部件采用ISO标准，打破国外同类产品的技术及备件的垄断，便于维护。
9根据客户需求提供正反驱动结构，可获得正反方向的检修门，适用于不同要求的维护空间，弥补了国外产品单侧维护门的不足，同一台机可实现正反方向的输送。
参数表Features：
1．KH750Horizontal Motion Conveyor can reach the weight and other effects that other conveyers can not reach.It takes theslow-forward fast-back motion to create a gentle conveying for the products.
2．Conveying chute is easy to clean. Coatings remain on product and don’t build up .There are no hard-to-clean areas on the drive base.
3．Move over 27 tons/hour without bogging down. High drive accelerations deliver the benefits of horizontal motion conveying for products that previously could only be handled by vibratory conveyors. But 750 is faster and more efficient.
4．Gentle slow –forword fast—back motion safely conveys even the most delicate products with less breakage and coating loss than vibratory conveyors.
5．Synchronizing wheel modular belt drive has few moving parts and requires no preventative maintenance .Quickly replace drive and motor units without removing the pan or top cover
6．KH750 moves products at up to 12 meters/min and operates at lower than 70 decibels,meet related operational standards.
7．Conveying chute is made ino various forms as required. Conveying chute can be made into semi-cylinder shape in the rear and cylinder shape in the front.This type is suitable for seasoning wrapping and Rev-Gate control distribution system.The tubular shape for conveying the powder can be made into multi-channel,multi-laying-off distribution mouth and the storage silo shape.
8．User-friendly design, all parts and components adopt the ISO standard, to break the monopoly of similar foreign products and spare parts, easy to maintain.
9．According to the customer needs to provide the structure of the positive and negative drive, the door for maintenance of positive and negative direction can be gained ,which applies to space maintanence of different requirements , to make up for the lack of unilateral maintenance door of foreign products, the same machine can achieve positive and negative direction of the conveying.
参数表
型号KH750 | 电源 380V 3PH 4HOLE | 机功率 0.75KW | 外部材料 T304 |
主机长901宽501高690（m） | 重量 主机280（kg） | 输送距离 1.5---13（m） | 输送槽长度可做成10米 |
Parameter list
Model KH750 | Power supply 380V 3PH 4HOLE | Power 0.75KW | External material T304 |
Main engine length 901width 501height 690（m） | Weight main engine280（kg） | Conveying distance 1.5---13（m） | Conveying chute can be made into `10m |
快速后退式水平物料输送机 KH250A
Horizontal Motion Conweyor KH250A
特点
1.KH250水平物料输送机工作原来及性能等同于KH750，更为紧凑的设计非常适宜组合称与输送平台周围的空间，强大的输送量完全满足任何多头称的流量需求。 2输送能力10吨/小时
3最快输送速度10米/分钟，运行噪音低于70分贝,符合有关运行标准。
4采用380V 3PH 0.25kw 60HZ(电源50HZ)电机,单机重量120Kg
5附件变频器电气及气动控制单元传感器
Features:
1. The working principle and performance ofKH250A Fastback Horizontal Motion Conweyor is the same as that of KH750,more compact design is very suitable for the surrounding space between heads combination weigher and conveying platform and huge conveying capacity can absolutely meet flow requiremnets for any heads combination weigher.
2. Conveying capacity 10 tons/hour.
3. The fastest conveying speed 10m/min,operational noise lower than 70 decibles,meet related operational standards.
4. Adopt380V 3PH 0.25kw 60HZ(power 50HZ)motor,weight for one machine 120kg
5. Attachments:transducer,electric and pneumatic control unit,sensor.
参数表
型号KH250A | 电源 380V 3PH 4HOLE | 机功率 0.25KW | 外部材料 T304 |
主机长586宽420高510（m） | 重量 主机180（kg） | 输送距离 1.5--3（m） |
Parameter list
Model KH250A | Power supply 380V 3PH 4HOLE | power 0.25KW | External material T304 |
main engine length 586width 420height 510（m） | Weight main engine180（kg） | Conveying distance 1.5--3（m） |
快速后退式水平物料输送机 KH250B
KH250B是可心机械制造有限公司根据市场需求，在2011年根据KH250A的基础上设计的又一款新型输送机，其特点是在原有的使用参数下配置。
KH250B is manufactured byNanjing Kexin Machinery Co.,Ltd.according to the market requirements.In 2011,the new conveyor was designed on the basis of KH250A with the features that the conveying chute can reach 4 m in the original parameter
Parameter list
Model KH250B | Power supply 380V 3PH 4HOLE | power 0.25KW | External material T304 |
Main engine length 760 width 420 height 510（m） | weight main engine200（kg） | Conveying distance 1.5--4（m） |
参数表
型号KH250B | 电源 380V 3PH 4HOLE | 机功率 0.25KW | 外部材料 T304 |
主机长760宽420高510（m） | 重量 主机200（kg） | 输送距离 1.5--4（m） |
